PTFE Coated E-glass Fabric – Advanced Structural Fabric for Permanent Industrial Repairs

PTFE-coated E-glass fabric patches combines the strength of woven fiberglass with the chemical resistance and durability of PTFE (polytetrafluoroethylene). The result is a high-performance material designed for demanding industrial environments where conventional composite wraps often fail.

This fabric is the structural backbone of the Tech-Bond Tech Patch Repair System (TPRS), providing long-term mechanical reinforcement while remaining flexible enough to conform to pipes, tanks, and irregular surfaces.

Scroll down to choose the sizes and the number of patches you want to purchase – The Patches you choose have already been “surface conditioned”. There is nothing you need to do to any of our patches. They are ready to be applied.

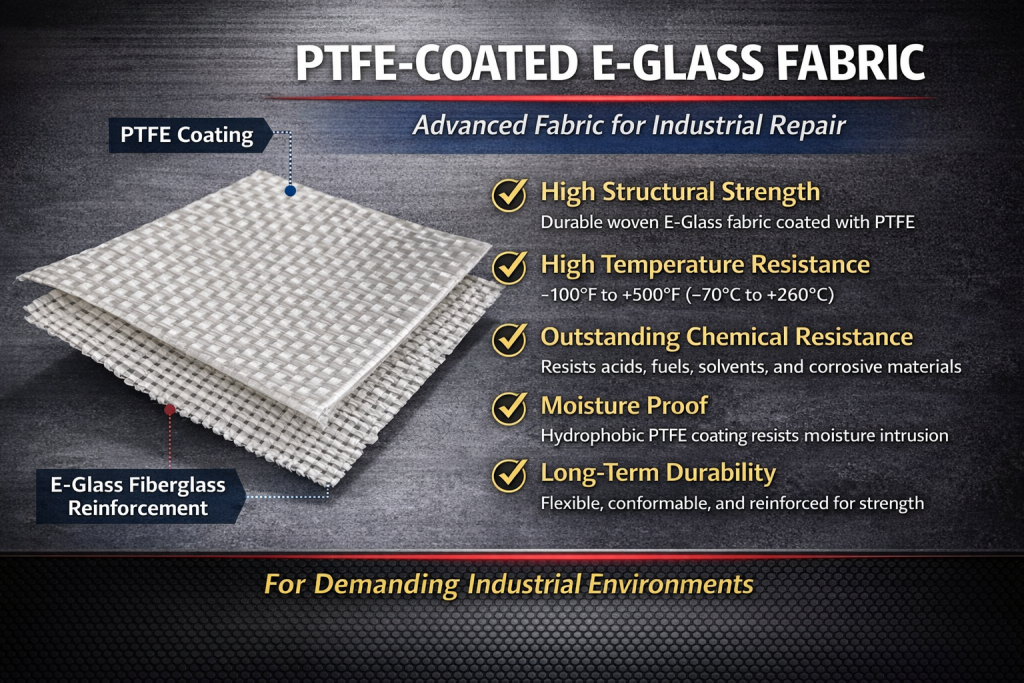

What PTFE-Coated E-Glass Fabric Is

PTFE-coated E-glass fabric is produced by coating a woven E-glass fiberglass fabric with PTFE resin. The fiberglass provides structural strength while the PTFE coating provides chemical resistance, temperature stability, and a non-reactive surface.

The combination produces a material capable of withstanding extreme industrial environments while maintaining dimensional stability and durability.

---

Key Material Properties

Exceptional Temperature Resistance

PTFE-coated fiberglass fabric can operate continuously in environments from approximately −70°C to +260°C (−100°F to +500°F) and can tolerate even higher temperatures for short periods.

The fiberglass reinforcement itself can tolerate even higher temperatures, while the PTFE coating protects against chemical attack and surface degradation.

---

Outstanding Chemical Resistance

PTFE is chemically inert and resistant to most acids, bases, and solvents, making the fabric suitable for use in fuel systems, chemical processing, mining operations, and harsh industrial environments.

This resistance helps ensure long-term durability even when exposed to aggressive chemicals or hydrocarbons.

---

High Structural Strength

The fiberglass base fabric provides excellent tensile strength and dimensional stability, allowing the material to resist stretching, deformation, and mechanical stress.

In structural fabrics, fiberglass fibers can reach extremely high tensile strength values, providing reinforcement comparable to many structural materials used in engineering applications.

---

Long-Term Durability

PTFE-coated fiberglass materials are widely used in industrial insulation, chemical plants, and high-temperature systems because they maintain structural integrity under harsh conditions and long service cycles.

---

Why PTFE-Coated Fabric Outperforms Composite Wraps

Traditional composite repair systems typically rely on resin-saturated fiberglass or carbon fiber wraps that cure into rigid composite structures. While these can provide strength, they often have several limitations:

Composite Wrap Limitations

Typical epoxy composite wraps may suffer from:

• Delamination between layers
• Moisture intrusion into the composite structure
• Brittleness and cracking during thermal cycling
• Long cure times and complex installation procedures

Composite wraps also depend heavily on the resin matrix, which can degrade over time due to temperature, chemical exposure, or mechanical stress.

---

Advantages of PTFE-Coated E-Glass Fabric

PTFE-coated E-glass fabric offers several advantages over conventional composite repair wraps:

1. Flexibility without structural compromise
The woven fabric structure allows the repair system to conform to pipes and tanks while maintaining strength.

2. Superior chemical protection
PTFE provides excellent resistance to fuels, solvents, and corrosive chemicals.

3. Resistance to moisture intrusion
PTFE is hydrophobic and resists moisture absorption.

4. Dimensional stability
The fiberglass reinforcement prevents creep, stretching, and distortion.

5. High-temperature capability
The material maintains performance in environments where epoxy composites may degrade.

---

Performance in Independent Testing

PTFE-coated fiberglass materials are widely used in industrial environments such as:

• chemical processing systems
• high-temperature insulation systems
• pipeline protection
• structural membranes and industrial fabrics

These applications require materials that maintain mechanical strength, chemical stability, and thermal performance under demanding conditions.

Independent material testing consistently confirms that PTFE-coated fiberglass fabrics provide:

• excellent tensile strength
• superior chemical resistance
• long-term thermal stability
• highly resistance to UV and environmental degradation
